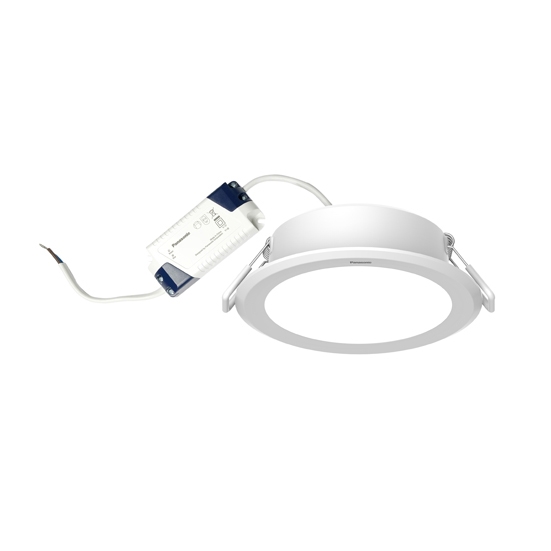

| Type of Luminaire | Downlight |
|---|---|
| CCT Changeable DL | |
| DN 2G | |
| Set Model No. | NNV70950WE1A |
| Type of Light Source | LED |
|---|---|
| Power Input | 9W |
| System Lumen Output | 720 lm |
| System Efficacy | 80 lm/W |
| Power Voltage | 220-240V |
| Power Factor | |
| Lifetime | 20000H(L70) |
| CCT | Color Changes : 3000-4000-6500K |
| CRI | 80 |
| SDCM | |
| Input Frequency | 50/60Hz |
| Dimming | non-Dimmable |
| Dimming Range | |
| UGR | |
| Glare Cut Angle | |
| Beam Angle | |
| Rotation Angle | |
| Tilt Angle | |
| IP code | 20 |
| IK code | |
| Ambient Temperature Range | 0 - 40°C |
| Surge Protection | |
| Classification of Luminaries | Class Ⅱ |
| THDi | |
| Effective Projected Area | |
| Driver | Integrated |
| Cut Out Size | 90mm |
| Dimensions | 109mm*32mm |
| Weight | 0.09 kg |
| Body | PP(White) |
| Reflector | |
| Diffuser | |
| Trim | PP(White) |
| Caseing | |
| Country of Origin | China |
| Brand | Panasonic |
| Remarks |
